4 Real-World Examples- Embedded RF Analysis

In the world of embedded RF system design, engineers are facing changing expectations. Capturing signals from a single vantage point or relying on isolated snapshots of the RF spectrum is no longer sufficient. Modern systems are becoming increasingly complex, integrating numerous radio modules, antennas, and subsystems, often operating simultaneously in densely packed environments. These complexities require solutions that go far beyond the capabilities of traditional spectrum analyzers.

The Need for Interchannel Correlation

At the core of these challenges lies the need for correlation. RF engineers must understand not only what's happening on a single channel, but also how signals behave across multiple channels in real time. Consider the scenario of an embedded system with multiple RF interfaces—for example, in a MIMO communications device or a phased array radar system. It's critical to determine whether all channels are synchronized, how they interact with each other, and whether their timing matches the expected behavior of the digital logic driving them.

Traditional tools struggle here. A typical spectrum analyzer provides deep insight into signal characteristics such as frequency content, power, and modulation—but only for one signal at a time. And while time-domain tools offer additional visibility, they often lack the resolution or correlation capabilities required for true multi-channel RF analysis.

Tools for visualizing multiple RF signals in real time

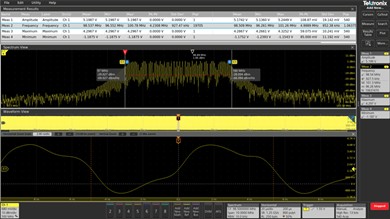

To bridge this gap, Tektronix offers a suite of advanced solutions designed specifically to address these challenges. A key innovation is the use of integrated digital downconverters (DDCs) on each input channel—a technology known as Spectrum View. This capability allows each channel to perform independent frequency analysis and simultaneous time-domain capture. Engineers can visualize amplitude, frequency, and phase information from multiple RF signals in real time, while maintaining the time correlation necessary for accurate debugging and analysis.

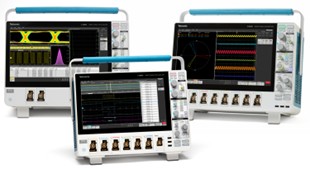

Tektronix's 4, 5, and 6 Series mixed-signal oscilloscopes (MSOs) are at the forefront of this innovation. Each of these platforms integrates Spectrum View technology, transforming a traditional oscilloscope into a powerful multi-channel spectrum analysis tool. The 4 Series MSO provides an excellent starting point for embedded RF system designers, offering up to 6 input channels with synchronized analysis. The 5 Series MSO adds higher bandwidth and more advanced triggering capabilities, while the 6 Series MSO delivers best-in-class signal fidelity and bandwidth, making it ideal for advanced RF applications.

Imagine being able to capture not only the RF signal from each antenna, but also digital control lines, baseband outputs, and even environmental signals like GPS timing or power supply changes—all simultaneously. With Tektronix instruments using Spectrum View, each input channel can be independently downconverted and analyzed, eliminating the need to switch between modes or compromise visibility. This holistic view of embedded RF systems makes modern solutions transformative.

One of the key drivers of this shift is SignalVu-PC, Tektronix's powerful analysis software. SignalVu-PC provides an advanced vector signal analysis toolset, enabling engineers to perform in-depth RF measurements such as modulation analysis, spectral emission testing, and time-correlated measurements across multiple domains.

This software views time not as a single waveform, but as a multidimensional structure. Engineers can freeze time points across channels, zoom in on critical events, and measure phase differences or modulation characteristics across multiple inputs simultaneously. Instead of exporting data from different devices and struggling with time stamp alignment, SignalVu-PC provides seamless correlation in real time.

Four examples illustrating real-time correlation

• Take, for example, a developer working on a UWB (ultra-wideband) communications platform. The performance of such a system often depends on precise synchronization and spectral matching. With Spectrum View's synchronized multi-channel acquisition and frequency domain understanding, the developer can evaluate rise times, modulation envelopes, and spectral transients across all channels, ensuring compliance and detecting anomalies without guesswork.
• In another case, consider a team of automotive engineers developing a next-generation ADAS (advanced driver assistance system) system with radar sensors at multiple angles across the vehicle. Each sensor must not only operate independently without interference but also provide time-synchronized data for real-time fusion into a coherent model of the surrounding environment. Using a Tektronix multi-channel acquisition and correlation system—both Spectrum View and SignalVu—engineers can test whether chirp signal sequences are time-aligned, whether intermodulation effects occur in specific driving scenarios, and how environmental reflections affect radar image coherence. These insights help refine radar algorithms and hardware designs before vehicles hit the road.
• In the aerospace and defense sector, the need for multi-channel correlation is becoming even more critical. Consider the case of an electronic warfare system, where the detection of enemy radar signals and the response with jamming signals must be not only accurate but also precisely synchronized. If the system responds too slowly or with incorrect synchronization, it may fail to deceive enemy tracking systems. By capturing and analyzing multiple RF channels simultaneously—both threat signals and the system's response—using SignalVu-PC, engineers can fine-tune detection and countermeasure timing, ensuring mission-critical reliability.
• In medical technology, RF telemetry is used to transmit real-time data from implantable devices. For example, a cardiac monitor may transmit signals to an external receiver, and it's important to ensure these transmissions are not disrupted by ambient RF noise. Multi-channel data acquisition tools, enhanced by Spectrum View, allow developers to simultaneously monitor device transmissions, local RF noise, and receiver responses, providing information about potential interference and packet loss that would otherwise be missed with single-channel devices.

Furthermore, in industrial IoT environments, RF sensors are deployed throughout the facility to monitor operations. These sensors must reliably transmit data despite electromagnetic interference (EMI) generated by equipment. With Tektronix multi-channel correlation systems, engineers can capture the timing and RF emissions of sensors along with noise sources, identifying patterns that cause data corruption and developing mitigation strategies, such as frequency hopping or improved shielding.

Confidence through a Multidimensional View

What unites these scenarios is the need for high confidence in how RF signals behave not in isolation, but in context. This context is temporal, spatial, and systemic. Temporal, because timing mismatches or jitter can break a system. Spatial, because multiple antennas and nodes interact in physical space. And systemic, because RF doesn't operate in a vacuum—it is affected by digital logic, power integrity, and even environmental factors.

Thus, the shift in RF test and measurement is to enable engineers to move from a one-dimensional view to a multidimensional understanding. Instead of asking, "What's happening on this single channel?" the question becomes, "How are all parts of the system behaving together at this point in time?"

This new paradigm is supported by software platforms like SignalVu-PC, which allow engineers to superimpose and analyze waveforms from different domains—RF, analog, and digital—and automate measurements that previously required hours of manual alignment and interpretation. They also support advanced triggering, where acquisition is initiated not by a simple threshold voltage, but by complex conditions, such as a specific bit pattern on a digital bus coinciding with a spectral spike.

The result is not only improved debugging but also faster development cycles. Teams can identify and resolve issues earlier in the design phase, reduce the time spent on system integration, and increase confidence during validation. In a competitive market where time to market and product reliability are critical, these advantages are significant.

As technology advances, with trends such as 6G, autonomous vehicles, and wearable medical devices, the importance of multi-channel, time-correlated RF analysis will only increase. Tomorrow's systems will be even more interconnected, with more demanding RF environments. The ability to see the whole picture—not just parts of it—will be crucial.

Conclusion: Context, Correlation, and Clarity

In conclusion, the transformation of embedded RF design isn't just about more data or faster instruments. It's about context, correlation, and clarity. By adopting Tektronix solutions—especially the 4, 5, and 6 Series MSOs, which integrate Spectrum View and leverage the powerful capabilities of SignalVu-PC—engineers have the tools they need to navigate complexity, ensure compliance, and deliver high-performance, reliable systems in an increasingly crowded RF world.
