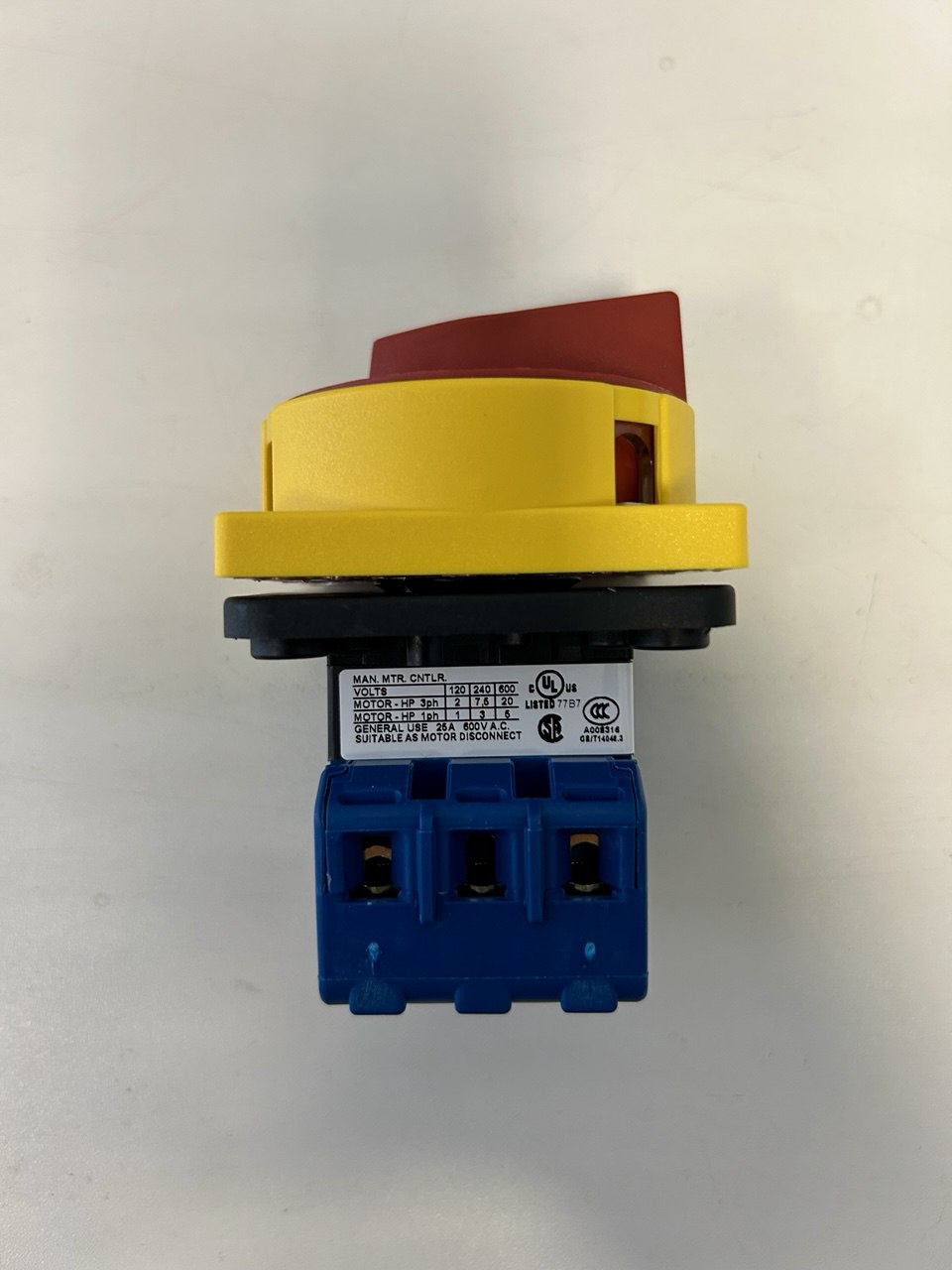

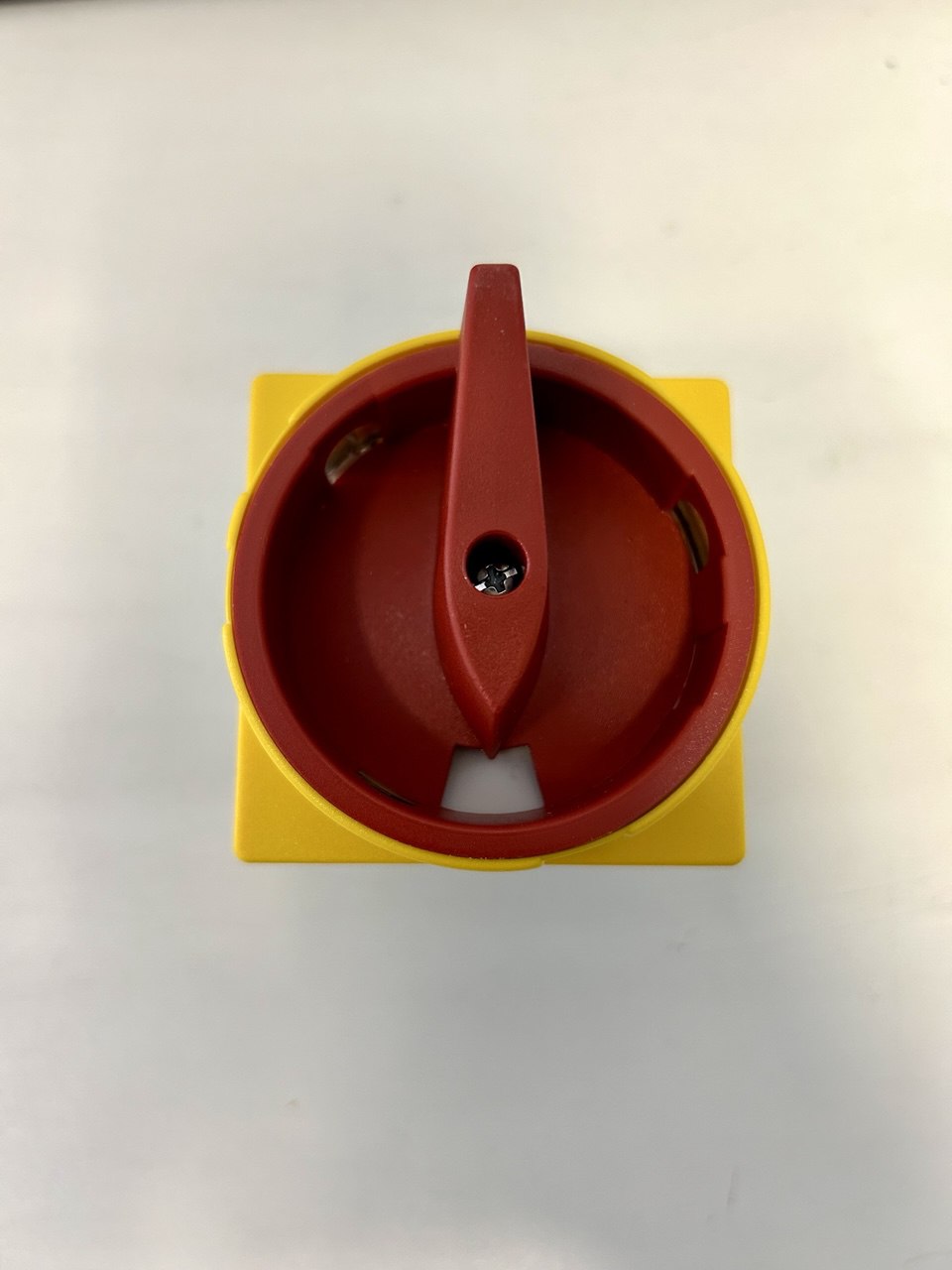

Main switch KG20B.T203/01.E

Manufacturer: Kraus & Naimer

Type: Main switch with emergency stop function

Model number: KG20B.T203/01.E

Material (MAT#): 70010033

Main characteristics:

• Drive type: Rotary actuator

• Number of poles: 3

• Rated current: 25 A

• Rated insulation voltage: 690 V

• Power at AC-3, 400 V: 7.5 kW

• Mounting: Panel, four-hole

• Dimensions (L x W x H): 53.8 x 42 x 54 mm

• Protection class: IP66 (high protection against dust and moisture)

• Position "0" (off): Yes

• Conforms to standards: IEC/EN 60947, IEC/EN 60204, VDE 0660, VDE 0113

• Origin: Germany

Features:

• Suitable for use as a main switch or emergency stop switch on industrial equipment.

• Reliable insulation and high protection rating make it ideal for harsh environments.

• Lockable (optional) for safety during maintenance.
