Speaker Driver / Loudspeaker Driver: A Complete Guide 2025

Imagine experiencing powerful, deep bass in a movie theater, yet still hearing quiet voices clearly. Or in a conference room, hearing a distant voice sounds clear and intelligible. This isn't due to the speaker cabinet or the amplifier. It's all due to one key component—the dynamic driver.

But there's an important caveat: a dynamic driver isn't a speaker system.

Drivers of different sizes handle different frequency ranges—larger ones handle bass, smaller ones handle high frequencies. This article provides a complete and accessible guide to dynamic drivers.

1. What is a dynamic driver?

A dynamic driver (also called a loudspeaker driver) is the component that converts electrical signals into sound. It consists of a diaphragm (cone or dome), a voice coil, and a magnet system. When an audio signal passes through the voice coil, a force is created that moves the diaphragm, producing sound.

Why is this important?

The driver is the core of any loudspeaker system. It determines the tonality, frequency response, clarity, volume, sensitivity, and power handling. In other words, the sound quality of a loudspeaker system depends largely on the dynamic driver.

2. How a Loudspeaker Driver Works

A loudspeaker driver converts electrical changes into mechanical motion. This motion vibrates air, creating sound waves. The design, mass, magnet system, and acoustic enclosure all affect clarity, bass strength, sensitivity, and distortion.

2.1 Main Components

• Diaphragm (cone/dome): moves air to create sound.

• Voice coil: conducts the audio signal.

• Magnet system: creates the magnetic field.

• Basket: supports the structure.

• Spider and surround: keep the diaphragm centered and allow freedom of movement.

2.2 How Electricity Becomes Sound

When the alternating current (AC) of the audio signal passes through the voice coil, it interacts with the magnetic field and creates a force (the Lorentz force). This force pushes the diaphragm back and forth, creating sound waves.

• Low frequencies = slow, large excursions

• High frequencies = fast, small excursions

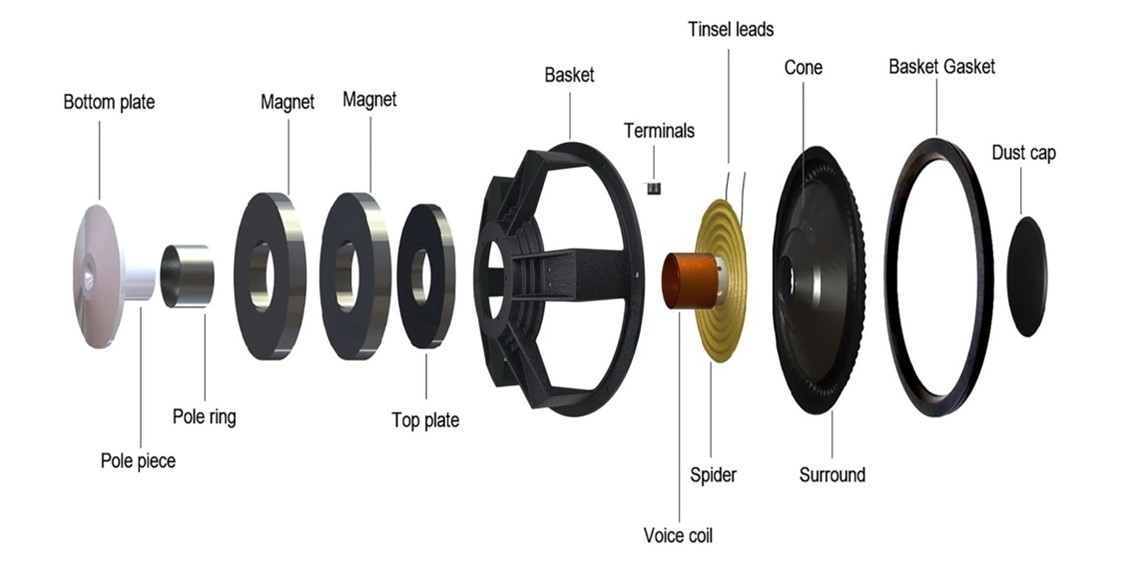

Dynamic Driver Components

3. Key Components of a Dynamic Driver

A detailed and clear description of the main parts of a loudspeaker driver.

3.1 Voice Coil

The voice coil is the key component that converts electrical signals into mechanical force. When an audio signal current passes through the voice coil, it creates an attractive or repulsive force in the magnetic field. This force moves the diaphragm back and forth, and this movement produces sound.

Impact on Performance:

• Sensitivity: A lighter voice coil responds faster and provides higher sensitivity.

• Power Handling: A larger, better-cooled voice coil can handle more power without burning out.

• Materials: Common options include copper (long-lasting), aluminum (lighter), and CCAW (copper-clad aluminum wire—lightweight and conductive).

3.2 Diaphragm

The diaphragm directly moves the air and creates sound waves. It is the "output element" of sound. Its stiffness, mass, and damping determine the clarity of the sound and the occurrence of distortion.

Common Materials:

• Paper: lightweight, natural sound, low distortion; often used in low-frequency drivers.

• Metal (aluminum, titanium): more rigid, good high-frequency response, but can cause metallic resonance.

• Composite materials (fiberglass, carbon fiber, polypropylene): good balance of mass, strength, and damping with better control.

3.3 Cone

A cone is a type of diaphragm commonly used in low- and mid-range drivers.

This shape is stronger and vibrates more steadily. It moves more air, improving low-frequency performance.

The cone shape also provides better sound dispersion, making the mid-low range more uniform. A larger cone produces more powerful bass; a smaller cone responds more quickly. 3.4 Dome

Dome diaphragms are typically used in high-frequency transducers (tweeters). Common materials include soft dome (silk) and metal dome.

Advantages: Very light, allowing for high-speed vibration. Faster and cleaner high-frequency response. Better sound dispersion, providing a more even distribution of high frequencies in the room.

3.5 Magnet System

The magnet creates a constant magnetic field in which the voice coil moves. The magnetic circuit affects the transducer's efficiency and control. A stronger magnet provides better control and more precise sound.

Two common magnet types: Ferrite: low cost, stable, heat-resistant, large, and heavy. Neodymium: strong magnetic force, compact size, increases sensitivity, widely used in professional audio and high-quality tweeters.

3.6 Basket / Frame

The basket is the "skeleton" of the transducer. It supports all components and holds the voice coil and diaphragm in the correct position.

Primary Materials:

Steel frame: Low cost, but can generate magnetic interference; heavier. Aluminum frame: Lighter, more rigid, reduces resonance, provides better heat dissipation, and increases power handling. High-quality and professional drivers typically use aluminum frames.

3.7 Spider and Surround

These two components control the diaphragm's trajectory and keep the driver within its normal travel.

Spider: Keeps the voice coil centered within the magnetic gap, controls the range of front-to-back movement, and affects linearity and bass response. A high-quality design ensures cleaner sound and lower distortion.

Surround: Connects the outer edge of the diaphragm to the basket, allows for free front-to-back movement, and absorbs unwanted vibrations. Common materials: rubber (durable) and foam (lightweight, but ages faster).

4. Types of Dynamic Drivers and Their Applications

4.1 Low-Frequency Driver (Woofer)

Operates in the bass range (20 Hz – 500 Hz). Large diaphragm, long excursion.

Applications:

• Sound reinforcement systems (PA)

• Home theaters

• Cinemas

4.2 Midrange Driver

Operates in the range of the human voice and most musical instruments (500 Hz – 4 kHz). Very important for intelligibility.

Applications:

• Sound reinforcement systems

• High-quality home acoustics

• Conference systems

4.3 High-Frequency Driver (Tweeter)

Operates in the high-frequency range (2 kHz – 20 kHz). Very lightweight diaphragm.

Applications:

• Home audio

• Studio monitors

• Commercial background music systems

4.4 Full-range driver

Covers the widest possible frequency range with a single driver.

Applications:

• DIY audio

• Compact speaker systems

• Small public address systems

4.5 Compression driver

Used in professional audio and sound reinforcement systems. Works in conjunction with a horn to increase sound pressure and transmission range.

Applications:

• Stadiums

• Railway stations

• Airports

• Outdoor public address systems

5. How Different Drivers Work Together

Different dynamic drivers work together because a single driver cannot simultaneously reproduce low, mid, and high frequencies. Each driver performs best in its own range, so dividing the tasks results in a cleaner, more balanced sound.

5.1 Two-Way System

A two-way system uses:

• A woofer for low and part of the midrange

• A tweeter for high frequencies

It is simple, economical, and widely used in home audio systems, studio monitors, and background music systems.

5.2 Three-Way System

A three-way system adds a midrange driver.

The woofer handles low frequencies, the midrange driver handles vocals and instruments, and the tweeter handles high frequencies. This reduces the load on each driver, producing a cleaner and more natural sound.

It is often used in high-quality home audio systems, cinemas, and professional sound reinforcement systems.

5.3 Crossover

To ensure that all drivers work together, a crossover is necessary. The crossover divides the full audio signal into different frequency bands and directs:

• Low frequencies to the woofer

• Mid frequencies to the midrange driver

• High frequencies to the tweeter

This prevents the woofer from reproducing high frequencies (which would sound muddy) and prevents low frequencies from reaching the tweeter (which could damage it).

The crossover acts as a "traffic controller" for the sound, directing the correct portion of the signal to each driver.

5.4 Result

The main advantage of using different drivers together is reduced distortion, improved clarity, and a more precise soundstage.

• The woofer is large and can move more air, producing powerful bass.

• The midrange driver is lightweight and makes voices sound more natural.

• The tweeter is very light and can vibrate quickly, reproducing clear high frequencies.

In sound reinforcement systems, a compression driver with a horn allows for greater sound transmission and more uniform coverage.

Because each driver operates within its optimal frequency range, the entire speaker system is capable of delivering full dynamics, a wide frequency range, and detailed sound.

6. How to Choose the Right Loudspeaker Driver

When selecting the right loudspeaker driver, the key is first determining the application scenario and then evaluating factors such as power handling, sensitivity, frequency response, and materials.

6.1 Sound Reinforcement Systems (PA)

Sound reinforcement systems require high sound pressure, strong directivity, and high reliability. A typical combination is a large woofer, compression driver, and horn. When choosing a PA system, consider high power handling (continuous and peak), high sensitivity (usually above 95–110 dB), and durable materials such as aluminum baskets, heat-resistant voice coils, and neodymium magnets. These designs allow sound to travel further and are less susceptible to damage during long-term use.

6.2 Home Theater

Home theaters emphasize detail and immersion. Deep bass, clear highs, and natural vocals are desirable. A three-way system with a high-quality woofer, midrange driver, and dome tweeter is suitable. Key criteria include a flat frequency response (e.g., 40 Hz - 20 kHz), low-distortion materials (paper composite cone, aluminum cone, silk dome), and moderate sensitivity (85-92 dB). This driver provides a more realistic reproduction of dialogue, background music, and low-frequency effects.

6.3 Conference Rooms

For conference systems, speech intelligibility is paramount. Choose a midrange driver with good midrange performance, a tweeter with a flat response, and a driver with a frequency range that covers the primary speech range (approximately 150 Hz – 12 kHz). Sensitivity doesn't need to be exceptionally high, but material stability and structural integrity are critical for distortion-free operation during long performances. For larger conference rooms, a high-efficiency compression driver with a horn is also essential for improved coverage.

6.4 Outdoor Broadcasting

Outdoor broadcasting in schools, factories, train stations, and recreation areas requires long-range, penetrating, and weather-resistant sound. A horn-loaded compression driver or a wide-angle, full-range driver is suitable. Key criteria: high sensitivity (above 95 dB), high power handling, moisture- and dust-resistant materials (polypropylene diaphragms, rubber surrounds, and neodymium magnets), and a corrosion-resistant frame. A very wide frequency response is not required, but adequate speech intelligibility in the 300 Hz–4 kHz range is essential.

Summary

• Power Handling: The higher the power, the better for larger spaces or high-volume applications.

• Sensitivity: High sensitivity is preferred for PA and outdoor applications. For home theater and studio applications, high sensitivity is optional.

• Frequency response: Should cover the key range required for the application.

7. Common Problems and Recommendations

7.1 Diaphragm Damage

Diaphragm damage is usually caused by very high volumes, excessive excursion, impact, or aging of the materials (paper cones and foam surrounds are particularly susceptible). When damaged, the sound becomes distorted, the mids and highs sound unnatural, and a buzz or pop may occur.

How to prevent:

• Avoid prolonged use at high volumes

• Keep the transducer clean

• Prevent dust or hard objects from coming into contact with the diaphragm

• For outdoor use, choose polypropylene or composite diaphragms with better weather resistance

7.2 Voice Coil Burnout

Voice coil burnout is often caused by power overload, insufficient cooling during prolonged use at high sound pressure, or amplifier clipping, which overheats the coil. This can result in weak, heavily distorted sound, or complete silence.

How to prevent:

• Use an amplifier that matches the transducer's parameters

• Avoid clipping

• Ensure good ventilation around the transducer; do not obstruct airflow

7.3 Magnet Demagnetization

Magnets can lose their strength due to high temperatures (ferrite magnets are more susceptible), strong impacts, or natural aging over long periods of use. Demagnetization reduces sensitivity, weakens the sound, and makes the frequency response unstable.

How to prevent:

• Avoid operating the transducer at high temperatures

• Choose neodymium magnets for better stability

• Avoid dropping or impacting the transducer

8. Conclusion

The dynamic transducer is the heart of any sound system. Choosing the right transducer means checking its power handling, sensitivity, frequency response, and materials. When each transducer operates within its optimal range, you get clear, powerful, and reliable sound. Frequently Asked Questions

1. Does driver size matter? Yes. Larger drivers produce deeper bass. Smaller drivers respond faster and perform better in the midrange and high frequencies.

2. What are bass drivers? Bass drivers include woofers and subwoofers. They move large volumes of air to produce powerful low frequencies.

3. How do you make a dynamic driver? Making a dynamic driver involves selecting a magnet, designing a voice coil, selecting a diaphragm, installing a spider and suspension, centering the coil in the magnetic gap, assembling all components with adhesive, and then testing the frequency response and sensitivity.
